| Key Features | Intel N100 +16GB +256GB + WiFi5 +2.5G Ethernet Network + HDMI2.0 *1+ USB3.2* 2+USB2.0* 2 |
| 基本配置描述 |
| 類型 | 描述 | 規格 |
| Product Form | Form Factor | 迷你電腦主機 |
| Dimensions | 173mm*116mm*26mm |
| Weight |
|
| 系統配置 |
| 類型 | 描述 | 規格 |

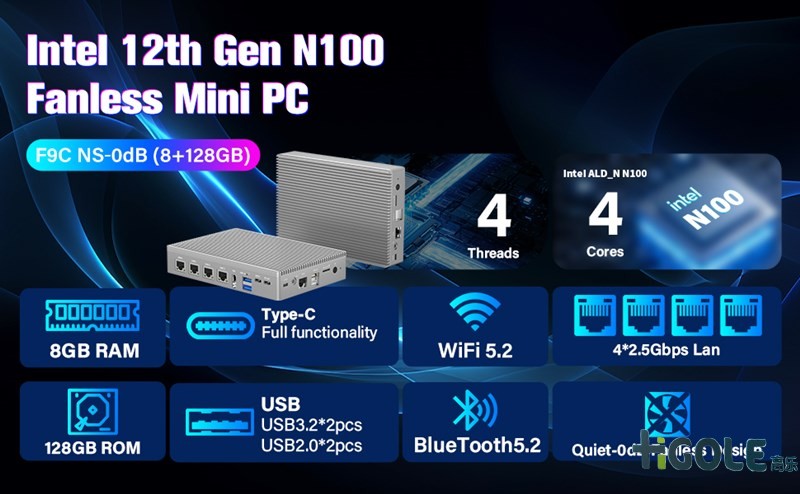

| CPU | Type | 12th Intel Alder Lake-N100 （Quad-core） |
| Speed | up to 3.4GHz |
| GPU | Type | Intel? UHD Graphics |
| Memory | Capacity | 16GB DDR4 |
| Storage | eMMC | 256GB |
| Speaker | Built-in | 8Ω/1W |
| G-sensor | Built-in | Yes |
| Light-sensor | Built-in | Optional |
| 網絡 |
| 類型 | 描述 | 規格 |
| WIFI | RTL8821CE-VC | Wi-Fi Dual-band 1T1R 11ac + Bluetooth 5.0 |
| Bluetooth | RTL8821CE-VC | Bluetooth 5.0 |

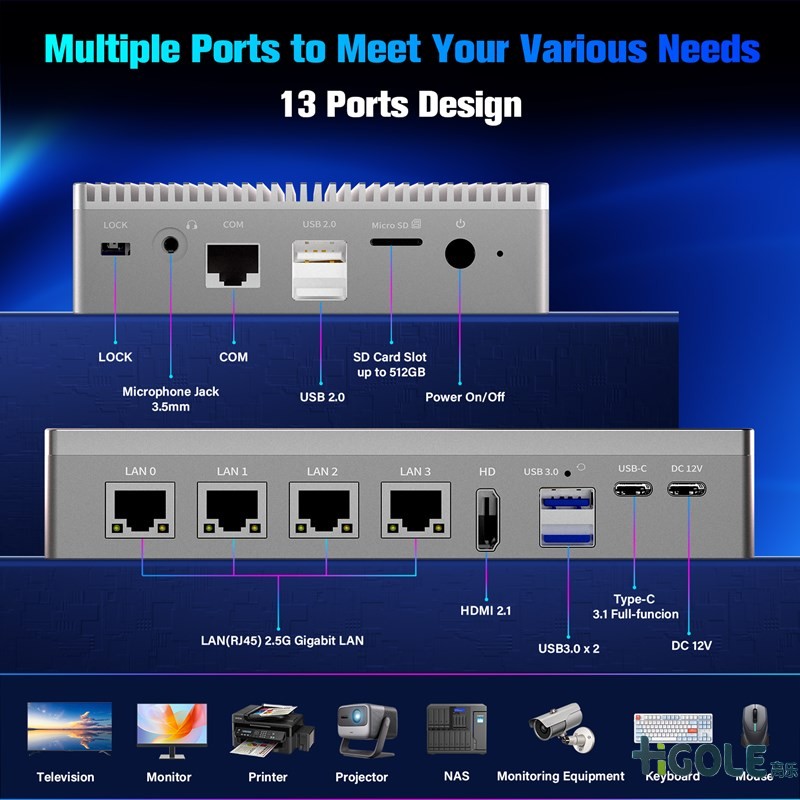

| Ethernet Network | RJ-45 | 2.5g Gigabit Lan 4pcs （RTL8125BG-CG） |
| 接口 |
| 類型 | 描述 | 規格 |
| Type-C | Type-C 3.1 | ×1pc (Full functionality) |
| USB Interface | USB3.2 | ×2pcs |
| USB2.0 | ×2pcs |
| SD / TF Card reader | TF Card reader | ×1pc (up to 512GB) |
| Audio Jack | 3.5mm standard headphone+Microphone | ×1pc |
| Button Switch: |
| 類型 | 描述 | 規格 |
| Power | On/Off | ×1pc |
| Forced outage | Power restart when push restart button | ×1pc |
| Main Accessories: |
| 類型 | 描述 | 規格 |
| Power adapter | DC 12V/3A | ×1pc |
| User's Manual | User's Manual | ×1pc |
| Software Configuration: |
| 類型 | 描述 | 規格 |
| Power on Function | By Power Button or Auto Power on | Optional |
| Wake up on Lan | Wake up on Lan by RJ45 | Yes |
| PXE | Preboot Execution Environment | Yes |
| Operating System | Windows 11 Pro or above | Yes (Officoal Windows license is Optional) |
| 環境 |
| 使用溫度 | Operation Temperature | -10oC ~ 55oC (1080p or 4K local video display) |
| Storage Temperature | -10oC ~ 70oC (Restore to Operation Temperature 2hr before use) |
| 存儲溫度 | Oprating Humidity | 35% ~ 80% relative humidity, Non-condensing |
| Storage Humidity | 20% ~ 93% relative humidity, Non-condensing |
| 認證 |
| CE | CE-Red | / |
